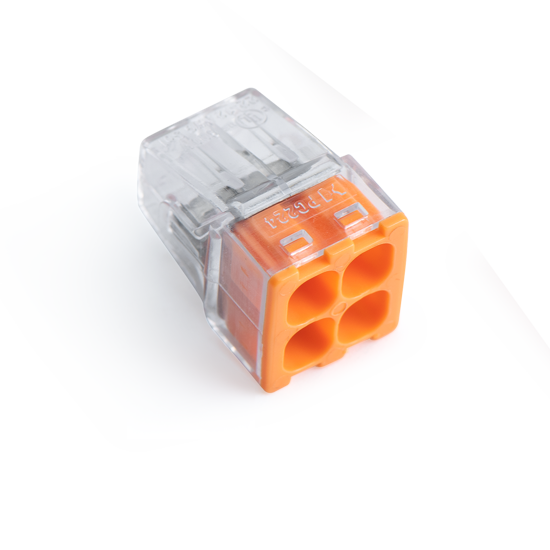

Push-In Wire Connectors
■ No Twisiting ! Safe and fast Reduce installation cost.
■ Suitable for 0.2-6MM (24-10AWG) wire connection.
■ Can be reused.
■ Test holes permits easy testing your connection with a voltage tester.
■ Compact size design perfect for tight spaces
■ Excellent for use in building distribution and junction boxes.
■ Rated to 600V max. for building wiring and 1000V max. signs or luminaires.
File Name
Colour
Number
Specification
Wire Size
Packing Unit
Controls
PC212U
Red
2
24A, 450V, T85℃
600V, 105°C (221°F)
600V, 105°C (221°F)
0,2-2,5mm², Rigid
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
10,000/ box
(10 bags,10,00/ bag)
(10 bags,10,00/ bag)
PC213U
Orange
3
24A, 450V, T85℃
0,2-2,5 mm², Rigid
0,2-2,5 mm², Rigid
600V, 105°C
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
10,000/ box
(10 bags,10,00/ bag)
(10 bags,10,00/ bag)
PC214U
Yellow
4
24A, 450V, T85℃
600V, 105°C
600V, 105°C
0,2-2,5 mm², Rigid
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
5,000/ box
(10 bags,500/ bag)
(10 bags,500/ bag)
PC215U
Gray
5
24A, 450V, T85℃
0,2-2,5 mm², Rigid
0,2-2,5 mm², Rigid
600V, 105°C
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
24-12 AWG, Sol
24-14 AWG, Tin-bonded Str
5,000/ box
(10 bags,500/ bag)
(10 bags,500/ bag)
PC332
Orange
3
32A/24A, 450V, T85℃
600V, 105°C (221°F)
600V, 105°C (221°F)
0,5-4,0 mm², Rigid Sol
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
100/ box, 10,000/ box
(10 bags,1000/ bag)
(10 bags,1000/ bag)
PC333
Orange
4
32A/24A, 450V, T85℃
600V, 105°C (221°F)
600V, 105°C (221°F)
0,5-4,0 mm², Rigid Sol
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
100/ box, 10,000/ box
(10 bags,1000/ bag)
(10 bags,1000/ bag)
PC334
Yellow
4
32A/24A, 450V, T85℃
600V, 105°C (221°F)
600V, 105°C (221°F)
0,5-4,0 mm², Rigid Sol
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
100/ box, 50,00/ box
(10 bags,500/ bag)
(10 bags,500/ bag)
PC335
Blue
5
32A/24A, 450V, T85℃
600V, 105°C (221°F)
600V, 105°C (221°F)
0,5-4,0 mm², Rigid Sol
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
0,5-2,5 mm², Rigid Str
22-12 AWG, Sol
20-12 AWG, Str
22-14 AWG, Tin-bonded Str
100/ box, 50,00/ box
(10 bags,500/ bag)
(10 bags,500/ bag)
PC863
Red
2
41A, 450V, T85℃
2,5-6,0mm² , Rigid
50/ box, 25,00/ box
(10 bags,250/ bag)
(10 bags,250/ bag)
