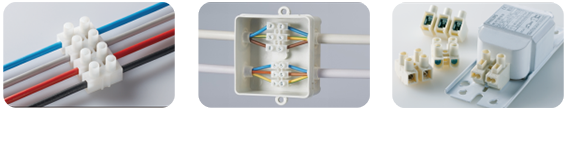

Terminal Blocks
■ Polyamide, UL 94V-2 or 94V-0 flame-retardant housing
■ The input and output wires are securely locked with screws .
■ Do not require crimping and soldering
■ The metal component is brass tubular contacts and zinc-plated steel contacts.
■ 12 poles, can be cut into desired poles
■ Certified to IEC/EN 60998、GB/T 13140 and Recognized to UL 1059.
File Name
Colour
Number
Specification
Wire Size
Packing Unit
Controls
PA8H-750C
Beige
12
24A, 450V, T140°C
20A, 300V, 105°C (221°F)
20A, 300V, 105°C (221°F)
0,75-2,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA8HDS-750C
Beige
12
24A, 450V, T140°C
20A, 300V, 105°C (221°F)
20A, 300V, 105°C (221°F)
0,75-2,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA10H-750C
Beige
12
32A, 450V, T140°C
30A, 300V, 105°C (221°F)
30A, 300V, 105°C (221°F)
1-4 mm², Rigid/Flex
22-10 AWG, Sol/Str
22-10 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA10HDS-750C
Beige
12
32A, 450V, T140°C
30A, 300V, 105°C (221°F)
30A, 300V, 105°C (221°F)
1-4 mm², Rigid/Flex
22-10 AWG, Sol
22-12 AWG, Str
22-10 AWG, Sol
22-12 AWG, Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA12H-750C
Beige
12
41A, 500V, T140°C
35A, 300V,105°C (221°F)
35A, 300V,105°C (221°F)
2,5-6 mm², Rigid/Flex
22-10 AWG, Sol/Str
22-10 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA12HDS-750C
Beige
12
41A, 500V, T140°C
35A,300V,105°C (221°F)
35A,300V,105°C (221°F)
2,5-6 mm², Rigid/Flex
22-10 AWG, Sol/Str
22-10 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA14H-750C
Beige
12
57A, 500V, T140°C
50A, 300V, 105°C (221°F)
50A, 300V, 105°C (221°F)
4-10 mm², Rigid/Flex
20-8 AWG, Sol/Str
20-8 AWG, Sol/Str
400/box
(10 bags,40/bag)
(10 bags,40/bag)
PA14HDS-750C
Beige
12
57A, 500V, T140°C
50A, 300V, 105°C (221°F)
50A, 300V, 105°C (221°F)
4-10 mm², Rigid/Flex
20-8 AWG, Sol/Str
20-8 AWG, Sol/Str
250/box
(10 bags,25/bag)
(10 bags,25/bag)
PA7F
Nature
12
17.5A, 450V, T110°C/T140°C
20A, 300V, 85°C (185°F)
20A, 300V, 85°C (185°F)
0.75-1,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA7
Nature
12
17.5A, 450V, T110°C/T140°C
20A, 300V, 85°C (185°F)
20A, 300V, 85°C (185°F)
0.75-1,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA7DS
Nature
12
17.5A, 450V, T110°C/T140°C
20A, 300V, 85°C (185°F)
20A, 300V, 85°C (185°F)
0.75-1,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA9
Nature
12
24A, 450V, T110°C/T140°C
30A, 600V, 105°C (221°F)
30A, 600V, 105°C (221°F)
1-2,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
