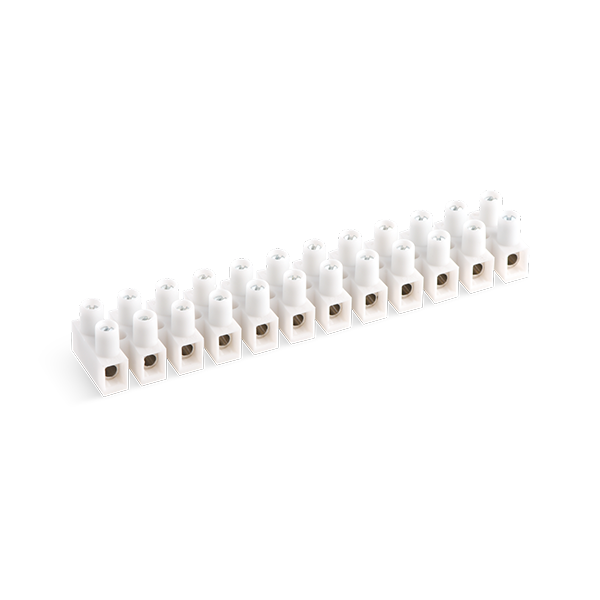

Terminal Block PA/Brass Type
■ Polyamide(PA), UL 94V-2 OR 94V-0 flame-retardant housing
■ Working temperature rated to T110 or T140(IEC)、105℃ (UL)
■ Brass contacts with or without spring steel wire protectors.
■ Recessed screws and tubular contacts provide added safety and help prevent short circuits
■ 12 poles, can be cut into desired poles
■ UL 1059 Listed 、IEC/EN 60998 and GB/T13140 Certified.
■ For use in electrical appliances, lighting and building wiring. Especially in OEM & Industry applications
File Name
Colour
Number
Specification
Wire Size
Packing Unit
Controls
PA8
Nature
12
24A,450V,T110°C/T140°C
20A,300V,105°C (221°F)
20A,300V,105°C (221°F)
0,75-2,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA8DS
Nature
12
24A,450V,T110°C/T140°C
20A, 300V, 105°C (221°F)
20A, 300V, 105°C (221°F)
0,75-2,5 mm², Rigid/Flex
22-12 AWG, Sol/Str
22-12 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA10
Nature
12
32A ,450V,T110°C/T140°C
30A, 300V, 105°C (221°F)
30A, 300V, 105°C (221°F)
1-4 mm², Rigid/Flex
22-10 AWG, Sol/Str
22-10 AWG, Sol/Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA10DS
Nature
12
32A,450V,T110°C/T140°C
30A, 300V, 105°C (221°F)
30A, 300V, 105°C (221°F)
1-4 mm², Rigid/Flex
22-10 AWG, Sol
22-12 AWG, Str
22-10 AWG, Sol
22-12 AWG, Str
500/box
(10 bags,50/bag)
(10 bags,50/bag)
PA12
Nature
12
41A,500V,T110°C/T140°C
35A, 300V, 105°C (221°F)
35A, 300V, 105°C (221°F)
2,5-6 mm², Rigid/Flex
22-10 AWG, Sol/Str
22-10 AWG, Sol/Str
400/box
(10 bags,40/bag)
(10 bags,40/bag)
PA12DS
Nature
12
41A,500V,T110°C/T140°C
35A, 300V, 105°C (221°F)
35A, 300V, 105°C (221°F)
2,5-6 mm², Rigid/Flex
22-10 AWG, Sol/Str
22-10 AWG, Sol/Str
400/box
(10 bags,40/bag)
(10 bags,40/bag)
PA14
Nature
12
57A,500V,T110°C/T140°C
50A, 300V, 105°C (221°F)
50A, 300V, 105°C (221°F)
4-10 mm², Rigid/Flex
20-8 AWG, Sol/Str
20-8 AWG, Sol/Str
250/box
(10 bags,25/bag)
(10 bags,25/bag)
PA14DS
Nature
12
57A,500V,T110°C/T140°C
50A, 300V, 105°C (221°F)
50A, 300V, 105°C (221°F)
4-10 mm², Rigid/Flex
20-8 AWG, Sol/Str
20-8 AWG, Sol/Str
250/box
(10 bags,25/bag)
(10 bags,25/bag)
PA16
Nature
12
76A, 500V, T110°C
68A, 300V, 105°C (221°F)
68A, 300V, 105°C (221°F)
6-16 mm², Rigid/Flex
14-6 AWG, Sol/Str
14-6 AWG, Sol/Str
200/box
(10 bags,20/bag)
(10 bags,20/bag)
PA18
Nature
12
101A, 500V, T110°C
87A, 300V, 105°C (221°F)
87A, 300V, 105°C (221°F)
10-25 mm², Rigid/Flex
12-4 AWG, Sol/Str
12-4 AWG, Sol/Str
100/box
(10 bags,10/bag)
(10 bags,10/bag)
